Overview
The ULS-OnNet is a compact, Generation 1 precision positioning system designed specifically for small to medium fixed-wing UAVs that land in nets or on tethers. It delivers <5cm horizontal and vertical accuracy at 1m distance (accuracy scales linearly with distance) up to 300 meters in a lightweight, easy-to-integrate package. Purpose-built for net capture and tether hook landing systems, currently in test production with select customers.
Key Applications
- Net Recovery Systems - Precision guidance for fixed-wing drones landing in capture nets (spider-web style)
- Tether Landing - Vertical tether capture with wing-mounted hook during approach
- Maritime Operations - Ship-based net/tether recovery for fixed-wing UAVs
- GPS-Denied Landing - Net/tether operations without GPS
- Tactical Fixed-Wing - Military and defense recovery operations
Key Features
Net & Tether Recovery Optimized
- Generation 1 platform - Proven optical positioning technology for fixed-wing recovery
- Net capture guidance - Precision approach for net recovery systems (spider-web capture)
- Tether hook landing - Vertical tether capture with wing-mounted hook
- Test production - Available for select early adopters
Lightweight Integration
- Compact design - Minimal size and weight impact
- Small UAV optimized - Perfect for drones up to 30kg
- Easy installation - Simple mounting and setup
- Flexible interfaces - Multiple connectivity options
Precision Performance
- <5cm horizontal and vertical at 1m (linear scaling) - Professional-grade positioning for close-range touchdown
- 300-meter range - Extended operating distance for flexible positioning
- Platform landing - Works on moving surfaces
- All-weather capable - Day/night operation
Universal Compatibility
- MAVLink protocol - Standard autopilot communication
- ArduPilot support - Compatible with Copter firmware
- PX4 integration - Works with PX4 autopilot
- Multiple interfaces - USB, UART, CAN connectivity
System Components
Compact Receiver
- Lightweight design - Optimized for small UAVs
- Low power consumption - Efficient operation
- Wide compatibility - Works with popular autopilots
- Easy mounting - Compact form factor for flexible installation

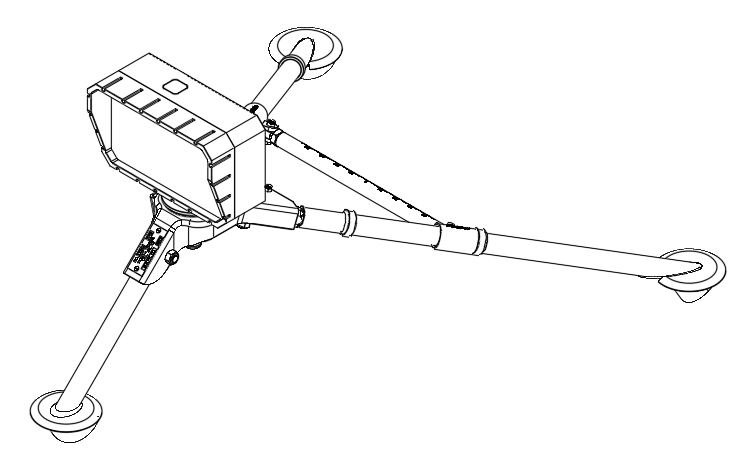

Ground Beacon
- Compact transmitter - Smaller footprint than previous generations
- Portable deployment - Easy to transport and set up
- Flexible power - 5-24V DC operation
- Weather resistant - Outdoor capable
Technical Specifications
| Parameter | Specification |
|---|---|
| System Performance | |
| Accuracy | <5cm horizontal and vertical at 1m (linear scaling) |
| Operating Range | Up to 300 m |
| Technology Generation | Generation 1 (Fixed-Wing) |
| Aircraft Type | Fixed-Wing (Net/Tether Recovery) |
| Landing Method | Net Capture or Tether Hook |
| System Configuration | |
| Target Platform | Fixed-Wing UAVs up to 80 kg (net/tether landing) |
| Design Focus | Compact and lightweight |
| Power Supply | 5-24 V DC |
| Interfaces | USB, UART, CAN |
| Compatibility | |
| MAVLink Protocol | Supported |
| ArduPilot | Compatible (Fixed-Wing) |
| PX4 | Compatible (Fixed-Wing) |
| Status | Test Production |
Net & Tether Recovery Technology
The ULS-OnNet features optical positioning optimized for fixed-wing net capture and tether hook landing:
Precision Approach Guidance
- Enhanced signal processing algorithms for net capture approach patterns
- Precision guidance for vertical tether interception with wing hook
- Improved noise rejection for ship-based and field recovery environments
- Better performance in challenging maritime and ground conditions
- Optimized for fixed-wing net capture and tether hook dynamics
Compact Architecture
- Reduced size and weight
- Lower power consumption
- Simplified integration
- Cost-effective design
Platform Landing Capability
- Moving surface tracking
- Dynamic position compensation
- Real-time motion adaptation
- Suitable for mobile platforms
Autopilot Integration
ArduPilot
Seamless integration with ArduPilot Copter:
- Precision landing mode support
- External positioning source
- MAVLink communication
- Standard serial connection
- Configuration through parameters
PX4
Full compatibility with PX4 firmware:
- Vision positioning integration
- Precision landing module
- Standard MAVLink messages
- Configurable through QGroundControl
Multi-Interface Support
Flexible connectivity options:
- USB - Direct computer connection
- UART - Standard serial interface
- CAN - Industrial bus protocol
Applications
Research & Development
Academic Research:
- Autonomous navigation studies
- Control system development
- Multi-drone coordination
- Indoor flight research
Technology Development:
- Next-gen UAV platforms
- Advanced autonomy algorithms
- Sensor fusion research
- Platform testing
Platform Landing
Moving Platforms:
- Vehicle-mounted landing pads
- Portable deployment bases
- Automated guided vehicles (AGV)
Maritime Light Operations:
- Small boat landing
- Portable ship installations
- Coastal monitoring
- Light maritime UAV operations
Benefits:
- Dynamic motion compensation
- Compact portable setup
- Platform tracking capability
- Flexible deployment
Test Production Status
The ULS-OnNet is currently in test production phase:
Current Status
- Generation 1 technology - Proven optical positioning for fixed-wing
- Select customers - Available for early adopters
- Field validation - Active testing and feedback with fixed-wing platforms
- Production preparation - Scaling for full production
Early Adopter Program
Benefits of early adoption:
- Access to latest technology
- Preferential pricing
- Direct engineering support
- Influence on final features
- Early delivery priority
Qualification Process
- Application review - Discuss your requirements
- Technical assessment - Ensure fit for your platform
- System delivery - Receive test production unit
- Integration support - Technical assistance provided
- Feedback program - Help shape final product
Documentation
Contact Us for additional information
Getting Started
Join the ULS-OnNet early adopter program:
- Contact Us - Express interest in test production program
- Application Review - Discuss your platform and requirements
- Technical Assessment - Ensure ULS-OnNet fits your needs
- System Delivery - Receive your test production unit
- Integration Support - Get technical assistance
- Testing Phase - Validate in your application
- Feedback - Share results and suggestions
- Production Transition - Priority access to production units
Contact Us to learn more about the ULS-OnNet early adopter program.
Support and Services
- Technical Support - Direct engineering assistance
- Integration Help - Autopilot integration support
- Documentation - Comprehensive technical materials
- Early Adopter Benefits - Preferential treatment and pricing
- Feedback Channel - Direct communication with engineering team
Need help choosing? The ULS-OnNet is ideal for fixed-wing UAVs requiring net capture or tether hook landing guidance (spider-web nets or vertical tether with wing-mounted hooks). For VTOL multi-rotors with proven production systems, see ULS-XCopter-G2 and ULS-Procopter. For helicopters and heavy-lift, consider ULS-Heli-G2.
